Toca-Discos
da empresa ELP inova na reprodução dos antigos discos de
vinil
com
tecnologia a laser para leitura dos sulcos, dispensando a
tradicional agulha.
Unidade
ótica com duplo feixe de laser faz a leitura dos sulcos
sem contato físico
com
o LP de vinil. Sistema sem desgaste (no wear), segundo o
fabricante.
Modelos
-
LT-1LRC:
Reproduz
LP's de 33 e 45 rpm
-
LT-1XRC:
Reproduz
LP's de 33, 45 e 78 rpm
-
LT-2XRC:
Reproduz
discos de qualquer tamanho em 33, 45 e 78 rpm
|
Especificações
Técnicas
| System |
Contact-Free,
5 Beam Optical Record Player |
Function
Play
Pause
Display
|
Drawer
system (Open/Close)
Automatic lead-in, lead-out
Programming (Max. 15 songs)
Forward and back scan (2 speed)
Forward and back search
Cueing (Muting)
Total, Elapsed, Remaining time
Record size, Revolution |
| Record
Type |
Black
Records |
| Drive
System |
Computer
Controlled Belt-Drive system |
Revolution
Speed Control
Record Size |
| LT-2XRC |
LT-1XRC |
LT-1LRC |
30
~ 50rpm
0.1rpm steps
60 ~ 90rpm
0.2rpm steps
7",8",9",10",11",12" |
30
~ 50rpm
0.1rpm steps
60 ~ 90rpm
0.2rpm steps
7",10",12" |
30
~ 50rpm
0.1rpm steps
7",10",12" |
|
| Frequency |
20Hz
- 25kHz |
| Channel
Separation |
Depends
on separation of Records
>25 db (20 ~ 20,000Hz, DIN 45 543 Test Record) |
| Output |
4.3mVrms
5cm/s 1kHz Lateral
9.7mVrms 8cm/s 1kHz 45° Left or Right modulation
11.3cm/s 1kHz Lateral (much like MM cartridge) |
| Distortion |
<0.5%
DIN45 543 1kHz Ref. Level |
| S/N
Ratio |
>55db
(Weighted) Ref. Level |
| Wow
& Flutter |
<0.07%
WRMS |
| Output
Terminal |
RCA
pin jacks |
| Power
Supply Voltage |
100V
50/60Hz, 120, 220, or 240V Available |
| Power
Consumption |
80W
(Max.) |
| Size |
470mm(W)
x 480mm(D) x 170mm(H) |
| Weight |
19kg |
Conheça
mais detalhes deste toca-discos visitando o site oficial do fabricante:
www.elpj.com
Maio/2007
VOLTAR
|

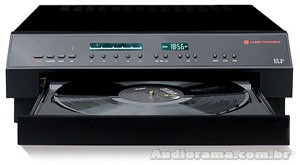

ELP Laser Turntable:
