Harman/Kardon: CD-Player


CD-Player (Modelos Fora de Linha)



CD-Changer FL-8385

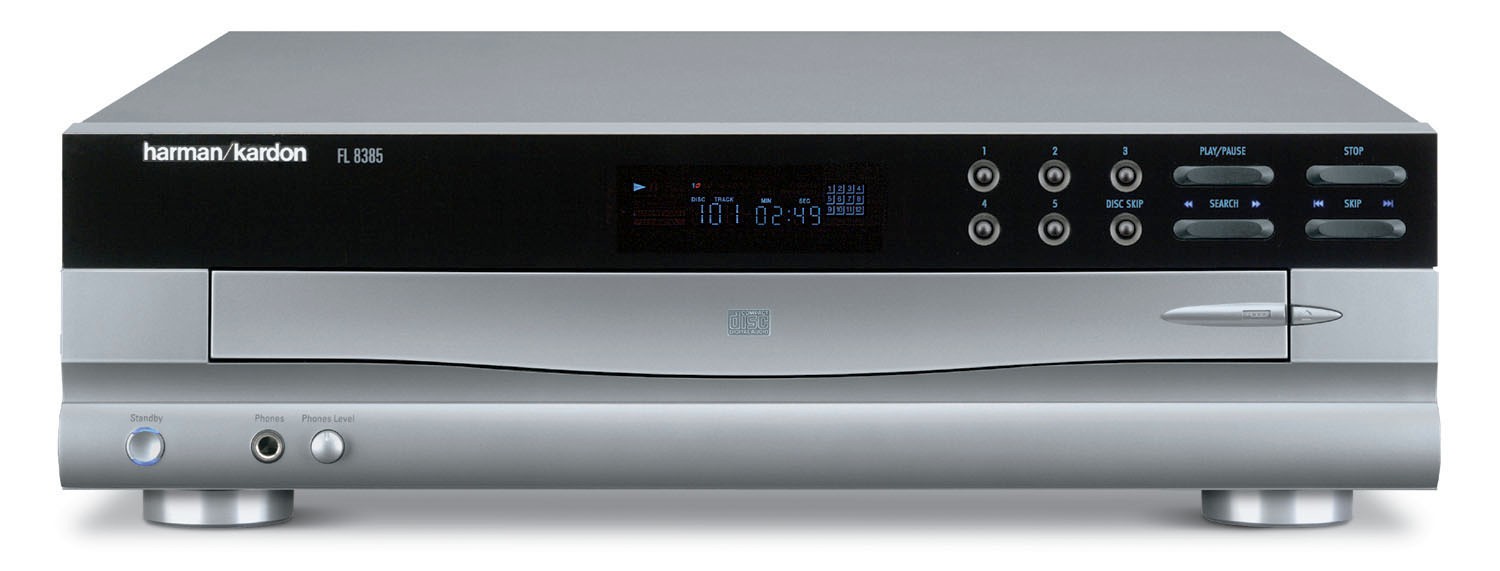

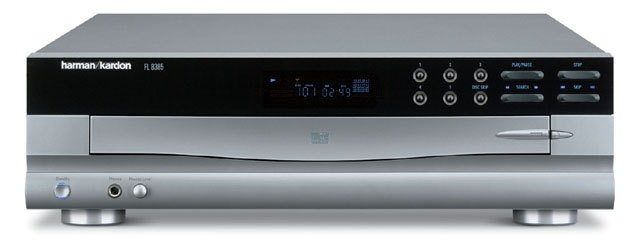

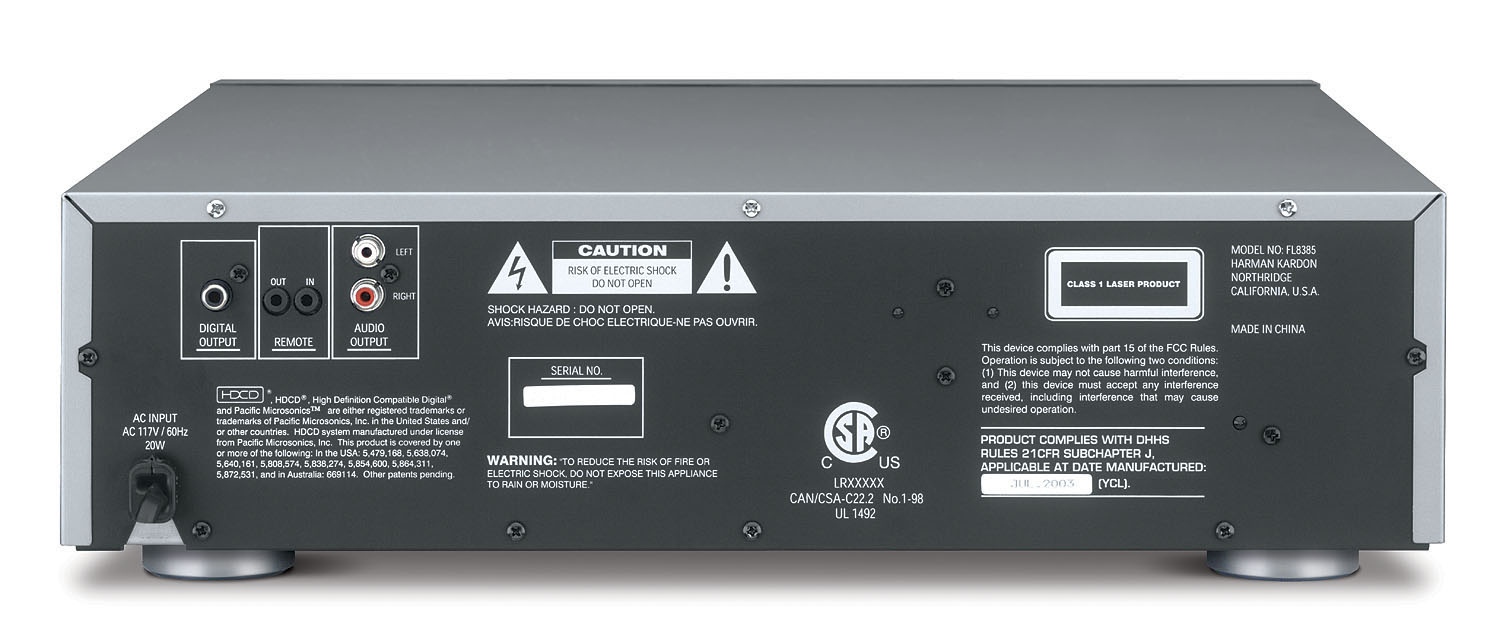

Super Foto | Painel Frontal | Painel Traseiro



Especificações Técnicas



Signal Format
Sampling Frequency : 44.1kHz
HDCD® Processing : Burr-Brown™ PCM1732
D/A Conversion : Dual 18-Bit
Oversampling : 8 Times

Discrete Analog Output Section
Error Correction : CIRC System
Frequency Response : 20Hz – 20kHz +0, –1dB
Total Harmonic Distortion : <0.02% @ 1kHz
Dynamic Range : >97dB
Signal-to-Noise Ratio : >97dB
Channel Separation : 80dB
Line-Level Output : 1.0V RMS
Digital Output : Coax

General
Power Requirement : 120V/60Hz
Power Consumption : 20 Watts
Unit Dimensions :
     Height : 5.1 inches (130mm)
     Width : 17.3 inches (440mm)
     Depth : 15.0 inches (380mm)
Carton Dimensions : 9.0 inches x 22.6 inches x 19.5 inches
(229mm x 575mm x 495mm)
Unit Weight : 16.5 lb (7.5kg)
Shipping Weight (System, Accessories, Packing) : 19.8 lb (9.0kg)
