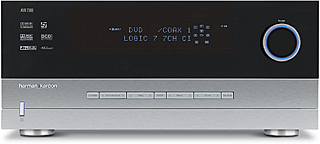

AVR-7300
-
AVR-7550
|
|
Receiver
Stereo
(Modelos Fora de
Linha)
|
-
HK-3380
-
HK-3385
-
HK-3390
-
HK-3480
-
HK-3485
-
HK-3490
|
OBSERVAÇÃO: A
potência informada pela Harman/Kardon para seus amplificadores e receivers é
a Potência Contínua (RMS). Os números podem parecer "baixos"
se comparados a alguns receivers de outras marcas, porém esta é a
potência real do aparelho, medida com todos os canais
funcionando simultaneamente, com carga de 8 Ohms,
sinal de 20Hz a 20kHz e distorção harmônica de 0.07%
(THD).
A grande maioria dos fabricantes apresenta valores de potência
"superiores" mas podem ser números mascarados, obtidos com
parâmetros totalmente diferentes... (sinal de 1kHz, até 1% de
THD, com apenas um dos canais operando... etc). Na prática, os
"50W" reais de um Harman/Kardon serão mais fortes que
os "100W" anunciados pelos outros fabricantes.
 Confira
AQUI os testes e medições de potência dos receivers
(Testes em laboratório, por diversas revistas e
sites especializados)
Informações técnicas complementares (capacitores, reserva de
energia)
Tabela comparativa entre receivers Harman/Kardon |
Multichannel

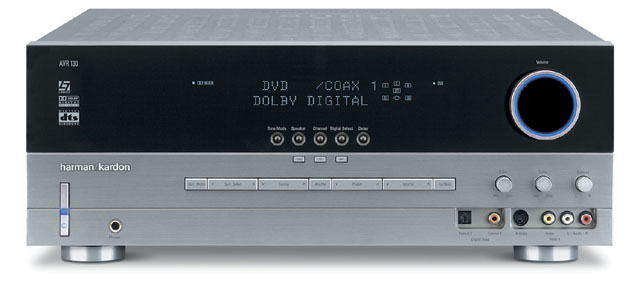

A/V Receiver AVR-130
(5.1)
Super Foto
| Painel Frontal |

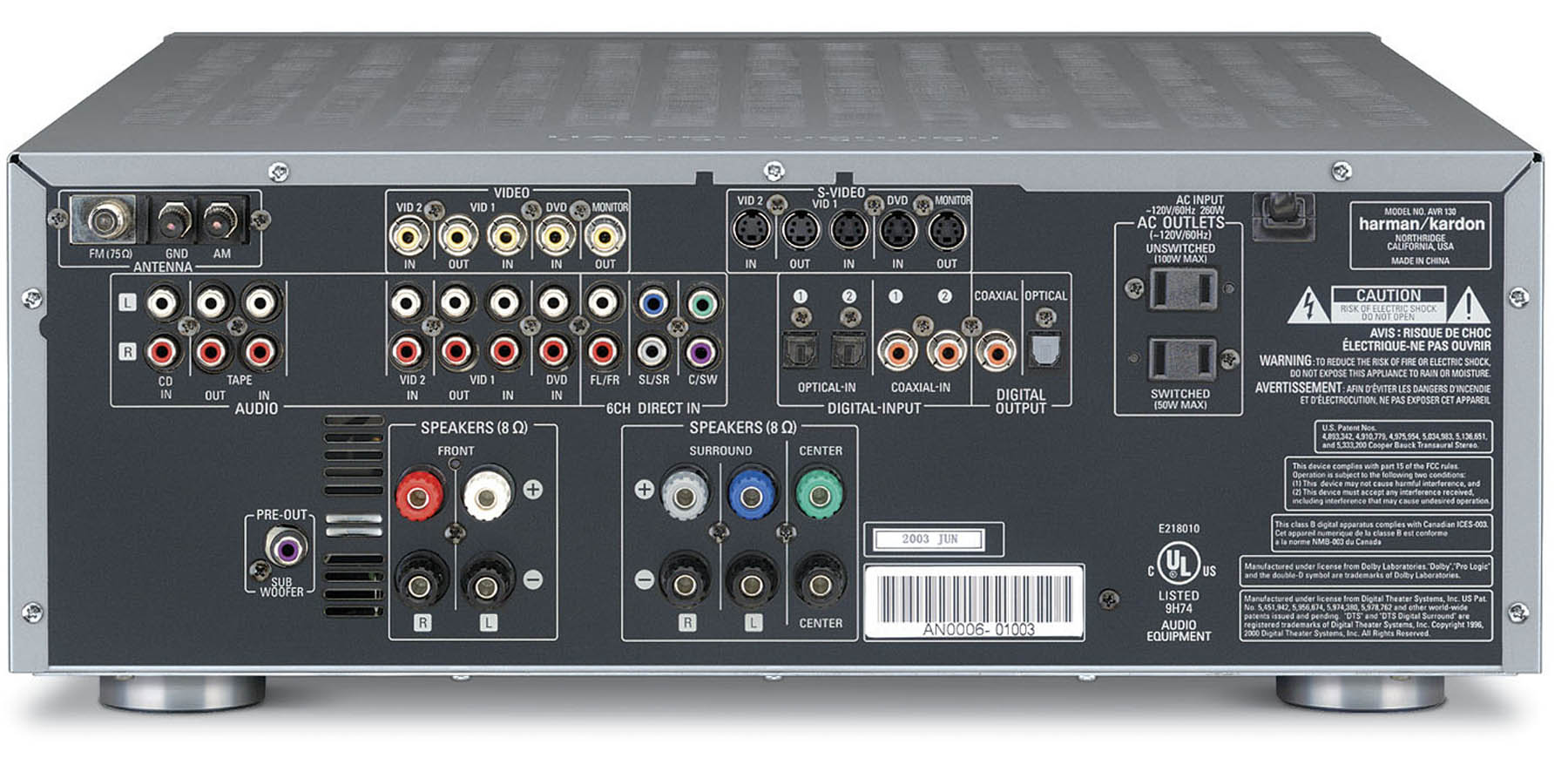

Painel Traseiro
Raio-X
(Fotos do interior do aparelho)

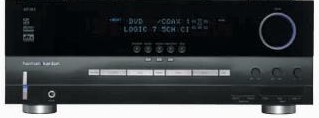

AVR-130BK
- série especial com painel todo preto!
Veja
a avaliação feita por "Audioholics"
Especificações
Técnicas
|
Audio
|
|
Stereo
Mode
Continuous Average Power (FTC) per Channel :
|
55
Watts per channel, @ <0.07% THD, 20Hz – 20kHz, both channels
driven into 8 ohms
|
|
Five-Channel
Surround Modes, Power per Individual Channel :
|
|
|
Front
L & R Channels :
|
45
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Center
Channel :
|
45
Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Surround
Channels :
|
45
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Input
Sensitivity/Impedance Linear (High-Level) :
|
200mV/47k
ohms
|
|
Signal-to-Noise
Ratio (IHF-A) :
|
100dB
|
|
Surround
System Adjacent Channel Separation :
|
|
|
Dolby®
Pro Logic® I and II :
|
45dB
|
|
Dolby®
Digital :
|
55dB
|
|
DTS®
:
|
55dB
|
|
Frequency
Response at 1W (+0dB, –3dB) :
|
10Hz
– 130kHz
|
|
High
Instantaneous Current Capability (HCC) :
|
±25
Amps
|
|
Transient
Intermodulation Distortion (TIM) :
|
Unmeasurable
|
|
Slew
Rate :
|
40V/µsec
|
|
FM
Tuner
|
|
Frequency
Range :
|
87.5–108.0MHz
|
|
Usable
Sensitivity :
|
IHF
1.3µV/13.2dBf
|
|
Signal-to-Noise
Ratio :
|
Mono/Stereo
70dB/68dB
|
|
Distortion
:
|
Mono/Stereo
0.2%/0.3%
|
|
Stereo
Separation :
|
40dB
@ 1kHz
|
|
Selectivity
:
|
±400kHz,
70dB
|
|
Rejection :
|
80dB
|
|
IF
Rejection :
|
90dB
|
|
AM
Tuner
|
|
Frequency
Range :
|
520–1720kHz
|
|
Signal-to-Noise
Ratio :
|
45dB
|
|
Usable
Sensitivity :
|
Loop
500µV
|
|
Distortion
:
|
1kHz,
50% Mod 0.8%
|
|
Selectivity
:
|
±10kHz,
30dB
|
|
Video
|
|
Television
Format :
|
NTSC
|
|
Input
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Output
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Video
Frequency Response :
|
10Hz
– 8MHz (–3dB)
|
|
General
|
|
Power
Requirement :
|
AC
120V/60Hz
|
|
Power
Consumption :
|
68W
idle, 540W maximum (2 channels driven)
|
|
Unit
Dimensions :
|
|
|
Width
:
|
17.3
inches (440mm)
|
|
Height
:
|
6.6
inches (168mm)
|
|
Depth
:
|
15
inches (382mm)
|
|
Carton
Dimensions :
|
21.5
inches x 9.9 inches x 17.9 inches
(545mm x 251mm x 455mm)
|
|
Unit
Weight :
|
23.8
lb (10.8kg)
|
|
Shipping
Weight (System, Accessories, Packing) :
|
28.2
lb (12.8kg)
|
Informações
técnicas complementares (capacitores/rerserva de energia)
Multichannel
A/V Receiver AVR-230
(6.1)
Super Foto

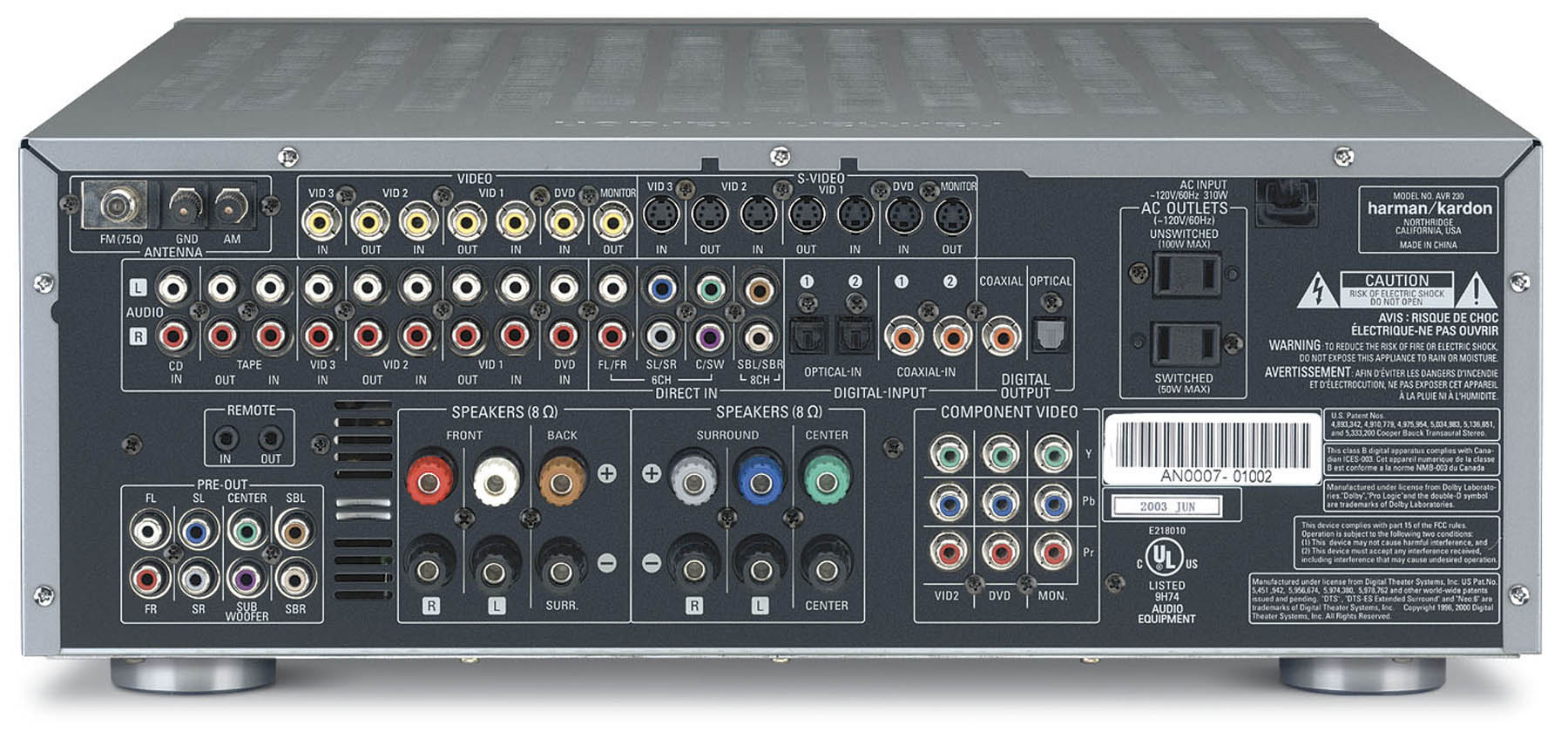

| Painel Frontal | Painel Traseiro
Veja
a avaliação feita por "Secrets of Home Theater & High
Fidelity"
Especificações
Técnicas
|
Audio
|
|
Stereo
Mode
Continuous Average Power (FTC) per Channel :
|
65
Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels
driven into 8 ohms
|
|
Six-Channel
Surround Modes, Power per Individual Channel :
|
|
|
Front
L & R Channels :
|
50
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Center
Channel :
|
50
Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Surround
Channels (L & R Side, Back) :
|
50
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Input
Sensitivity/Impedance Linear (High-Level) :
|
200mV/47k
ohms
|
|
Signal-to-Noise
Ratio (IHF-A) :
|
100dB
|
|
Surround
System Adjacent Channel Separation :
|
|
|
Dolby®
Pro Logic® I and II :
|
40dB
|
|
Dolby®
Digital :
|
55dB
|
|
DTS®
:
|
55dB
|
|
Frequency
Response at 1W (+0dB, –3dB) :
|
10Hz
– 130kHz
|
|
High
Instantaneous Current Capability (HCC) :
|
±35
Amps
|
|
Transient
Intermodulation Distortion (TIM) :
|
Unmeasurable
|
|
Slew
Rate :
|
40V/µsec
|
|
FM
Tuner
|
|
Frequency
Range :
|
87.5–108.0MHz
|
|
Usable
Sensitivity :
|
IHF
1.3µV/13.2dBf
|
|
Signal-to-Noise
Ratio :
|
Mono/Stereo
70/68dB
|
|
Distortion
:
|
Mono/Stereo
0.2/0.3%
|
|
Stereo
Separation :
|
40dB
@ 1kHz
|
|
Selectivity
:
|
±400kHz,
70dB
|
|
Rejection :
|
80dB
|
|
IF
Rejection :
|
90dB
|
|
AM
Tuner
|
|
Frequency
Range :
|
520
– 1720kHz
|
|
Signal-to-Noise
Ratio :
|
45dB
|
|
Usable
Sensitivity :
|
Loop
500µV
|
|
Distortion
:
|
1kHz,
50% Mod 0.8%
|
|
Selectivity
:
|
±10kHz,
30dB
|
|
Video
|
|
Television
Format :
|
NTSC
|
|
Input
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Output
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Video
Frequency Response :
|
|
|
Composite
and S-Video :
|
10Hz
– 8MHz (–3dB)
|
|
Component
Video :
|
10Hz
– 30MHz (–3dB)
|
|
General
|
|
Power
Requirement :
|
AC
120V/60Hz
|
|
Power
Consumption :
|
118W
idle, 890W maximum (6 channels driven)
|
|
Unit
Dimensions :
|
|
|
Width
:
|
17.3
inches (440mm)
|
|
Height
:
|
6.6
inches (168mm)
|
|
Depth
:
|
15
inches (382mm)
|
|
Carton
Dimensions :
|
21.5
inches x 9.9 inches x 17.9 inches
(545mm x 251mm x 455mm)
|
|
Unit
Weight :
|
27.3
lb (12.4kg)
|
|
Shipping
Weight (System, Accessories, Packing) :
|
31.9
lb (14.5kg)
|
Informações
técnicas complementares (capacitores/rerserva de energia)
Multichannel
A/V Receiver AVR-330
(7.1)
Super Foto

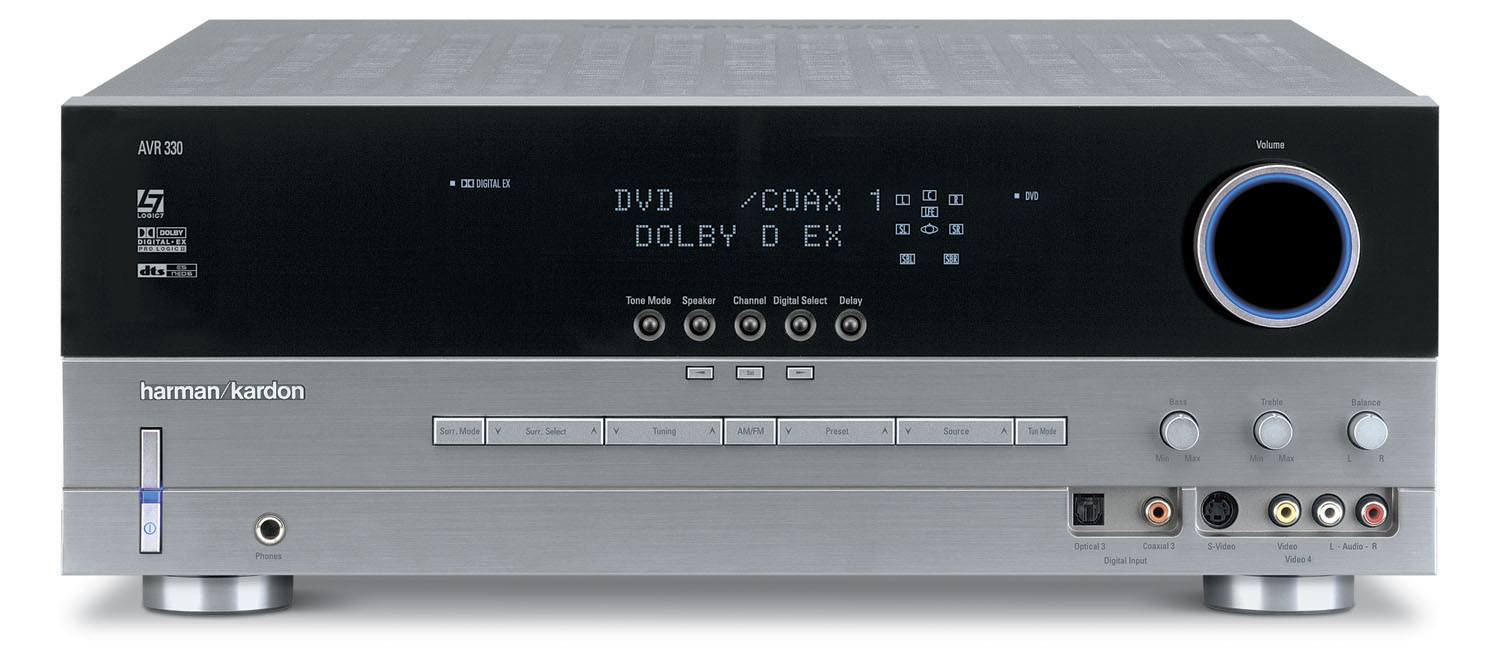

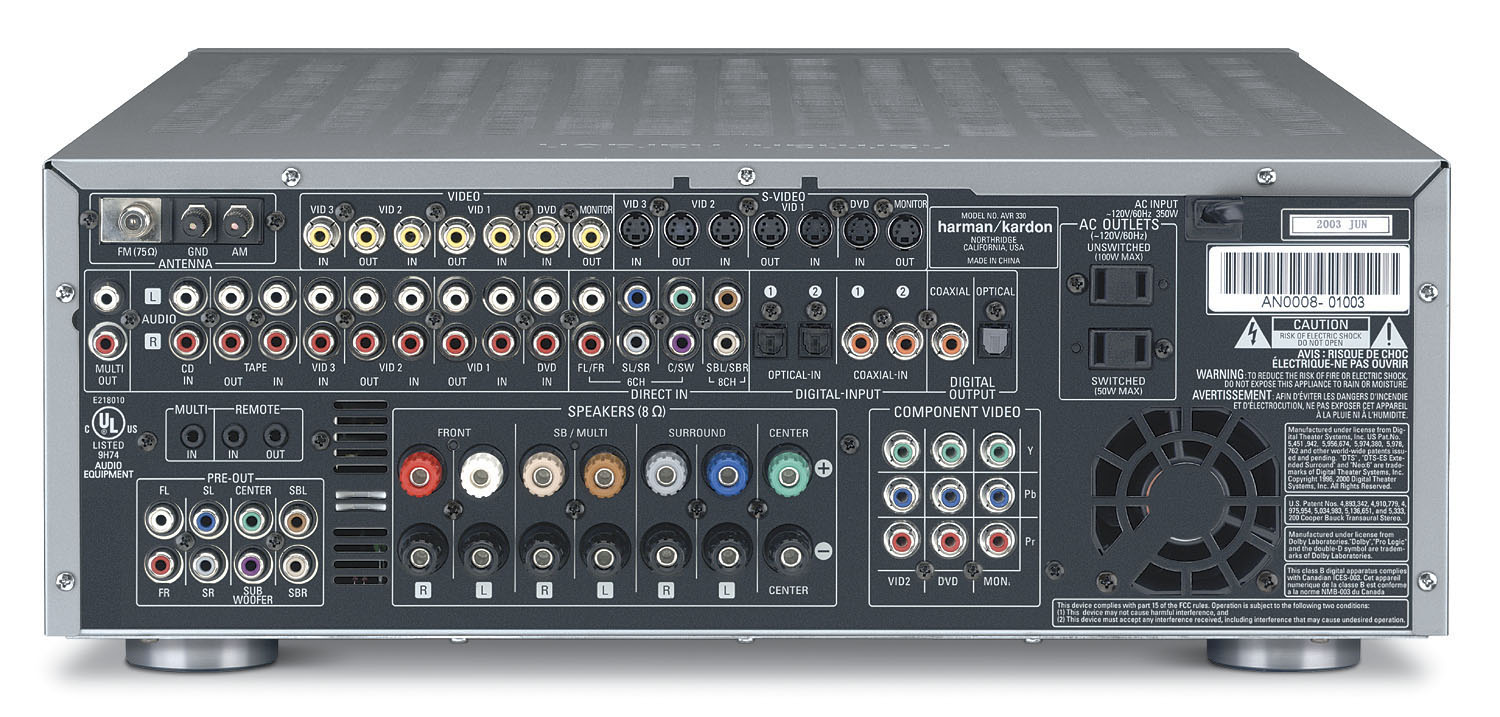

| Painel Frontal | Painel Traseiro
Veja
a avaliação feita por "Sound & Vision"
Veja
a avaliação feita por "Home Cinema Choice"
Veja
a avaliação feita por "On Home Theater"
Especificações
Técnicas
|
Audio
|
|
Stereo
Mode
Continuous Average Power (FTC) per Channel :
|
65
Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels
driven into 8 ohms
|
|
Seven-Channel
Surround Modes, Power per Individual Channel :
|
|
|
Front
L & R Channels :
|
55
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Center
Channel :
|
55
Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Surround
Channels (L & R Side, L & R Back) :
|
55
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Input
Sensitivity/Impedance Linear (High-Level) :
|
200mV/47k
ohms
|
|
Signal-to-Noise
Ratio (IHF-A) :
|
100dB
|
|
Surround
System Adjacent Channel Separation :
|
|
|
Dolby®
Pro Logic® I and II :
|
40dB
|
|
Dolby®
Digital :
|
55dB
|
|
DTS®
:
|
55dB
|
|
Frequency
Response at 1W (+0dB, –3dB) :
|
10Hz
– 130kHz
|
|
High
Instantaneous Current Capability (HCC) :
|
±35
Amps
|
|
Transient
Intermodulation Distortion (TIM) :
|
Unmeasurable
|
|
Slew
Rate :
|
40V/µsec
|
|
FM
Tuner
|
|
Frequency
Range :
|
87.5–108.0MHz
|
|
Usable
Sensitivity :
|
IHF
1.3µV/13.2dBf
|
|
Signal-to-Noise
Ratio :
|
Mono/Stereo
70/68dB
|
|
Distortion
:
|
Mono/Stereo
0.2/0.3%
|
|
Stereo
Separation :
|
40dB
@ 1kHz
|
|
Selectivity
:
|
±400kHz,
70dB
|
|
Rejection :
|
80dB
|
|
IF
Rejection :
|
90dB
|
|
AM
Tuner
|
|
Frequency
Range :
|
520–1720kHz
|
|
Signal-to-Noise
Ratio :
|
45dB
|
|
Usable
Sensitivity :
|
Loop
500µV
|
|
Distortion
:
|
1kHz,
50% Mod 0.8%
|
|
Selectivity
:
|
±10kHz,
30dB
|
|
Video
|
|
Television
Format :
|
NTSC
|
|
Input
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Output
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Video
Frequency Response :
|
|
|
Composite
and S-Video :
|
10Hz–8MHz
(–3dB)
|
|
Component
Video :
|
10Hz–30MHz
(–3dB)
|
|
General
|
|
Power
Requirement :
|
AC
120V/60Hz
|
|
Power
Consumption :
|
118W
idle, 890W maximum (7 channels driven)
|
|
Unit
Dimensions :
|
|
|
Width
:
|
17.3
inches (440mm)
|
|
Height
:
|
6.6
inches (168mm)
|
|
Depth
:
|
15
inches (381mm)
|
|
Carton
Dimensions :
|
21.5
inches x 9.9 inches x 17.9 inches
(545mm x 251mm x 455mm)
|
|
Unit
Weight :
|
30.6
lb (13.9kg)
|
|
Shipping
Weight (System, Accessories, Packing) :
|
35.2
lb (16kg)
|
Informações
técnicas complementares (capacitores/rerserva de energia)
Multichannel

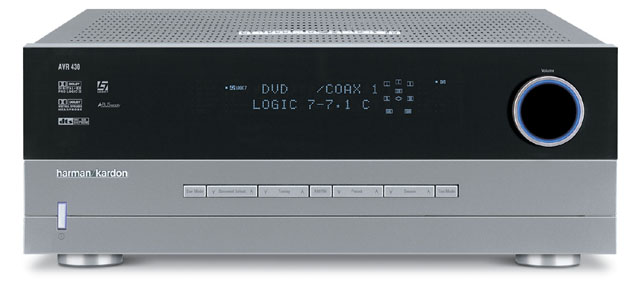

A/V Receiver AVR-430
(7.1)
Super Foto
| Painel Frontal | Painel Traseiro
Raio-X
(Fotos do interior do
aparelho)
Especificações
Técnicas
|
Audio
|
|
Stereo
Mode :
|
|
|
Continuous
Average Power (FTC) Per Channel :
|
80
Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels
driven into 8 ohms
|
|
Seven-Channel
Surround Modes, Power per Individual Channel :
|
|
|
Front
L & R Channels :
|
65
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Center
Channel :
|
65
Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Surround
Channels (L & R Side, L & R Back) :
|
65
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Input
Sensitivity/Impedance Linear (High-Level) :
|
200mV/47k
ohms
|
|
Signal-to-Noise
Ratio (IHF-A) :
|
95dB
|
|
Surround
System Adjacent Channel Separation :
|
|
|
Dolby®
Pro Logic® I and II :
|
40dB
|
|
Dolby®
Digital :
|
55dB
|
|
DTS®
:
|
55dB
|
|
Frequency
Response at 1W (+0dB, –3dB) :
|
10Hz
– 130kHz
|
|
High
Instantaneous Current Capability (HCC) :
|
±40
Amps
|
|
Transient
Intermodulation Distortion (TIM) :
|
Unmeasurable
|
|
Slew
Rate :
|
40V/µsec
|
|
FM
Tuner
|
|
Frequency
Range :
|
87.5–108.0MHz
|
|
Usable
Sensitivity :
|
IHF
1.3µV/13.2dBf
|
|
Signal-to-Noise
Ratio :
|
Mono/Stereo
70/68dB
|
|
Distortion
:
|
Mono/Stereo
0.2/0.3%
|
|
Stereo
Separation :
|
40dB
@ 1kHz
|
|
Selectivity
:
|
±400kHz,
70dB
|
|
Rejection :
|
80dB
|
|
IF
Rejection :
|
90dB
|
|
AM
Tuner
|
|
Frequency
Range :
|
520–1720kHz
|
|
Signal-to-Noise
Ratio :
|
45dB
|
|
Usable
Sensitivity :
|
Loop
500µV
|
|
Distortion
:
|
1kHz,
50% Mod 0.8%
|
|
Selectivity
:
|
±10kHz,
30dB
|
|
Video
|
|
Television
Format :
|
NTSC
|
|
Input
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Output
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Video
Frequency Response :
|
|
|
Composite
and S-Video :
|
10Hz–8MHz
(–3dB)
|
|
Component
Video :
|
10Hz–50MHz
(–3dB)
|
|
General
|
|
Power
Requirement :
|
AC
120V/60Hz
|
|
Power
Consumption :
|
59W
idle, 940W at rated power output (7 channels driven)
|
|
Unit
Dimensions :
|
|
|
Width
:
|
17.3
inches (440mm)
|
|
Height
:
|
6.5
inches (165mm)
|
|
Depth
:
|
17.1
inches (435mm)
|
|
Carton
Dimensions :
|
20.1
inches x 10 inches x 22.2 inches
(510mm x 254mm x 565mm)
|
|
Unit
Weight :
|
39
lb (17.7kg)
|
|
Shipping
Weight (System, Accessories, Packing) :
|
45
lb (20.4kg)
|
Informações
técnicas complementares (capacitores/rerserva de energia)
Multichannel
A/V Receiver AVR-630
(7.1)
Super Foto

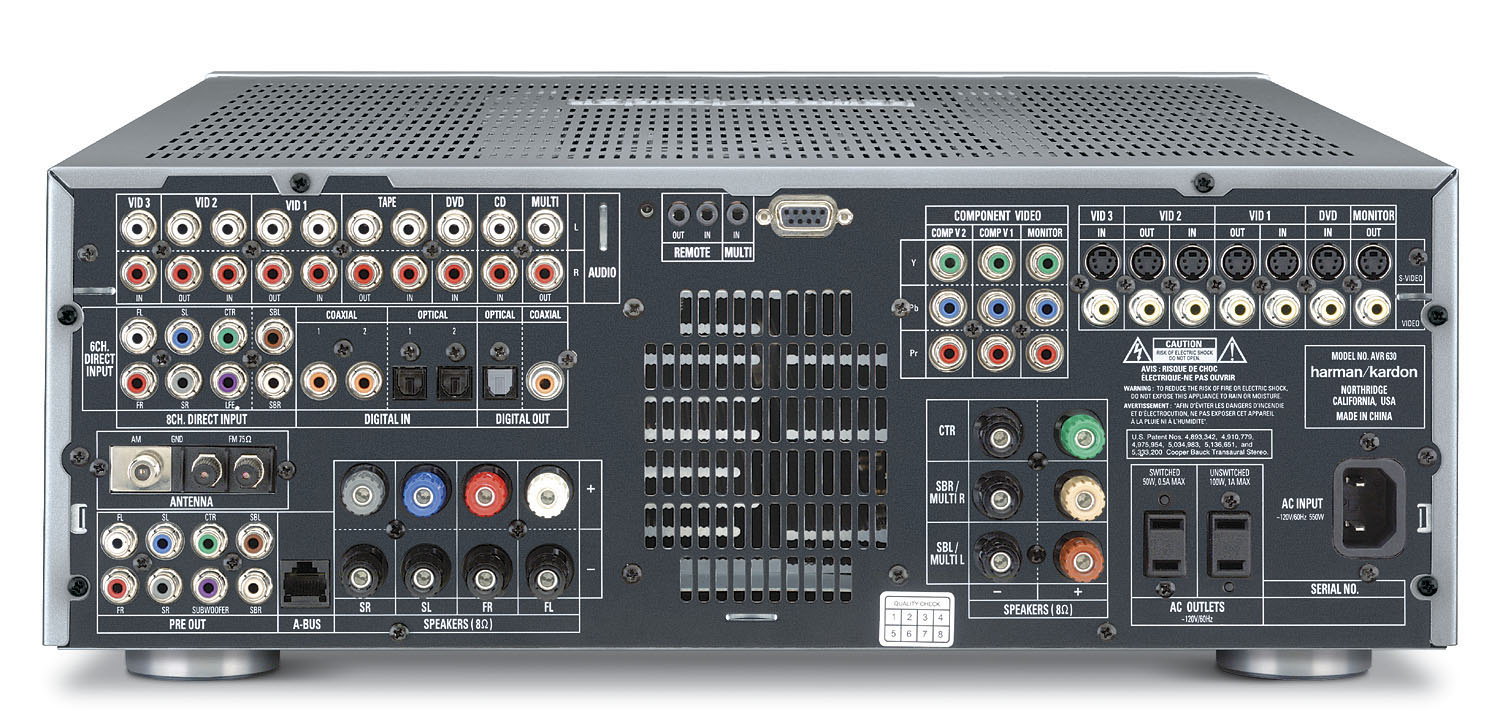

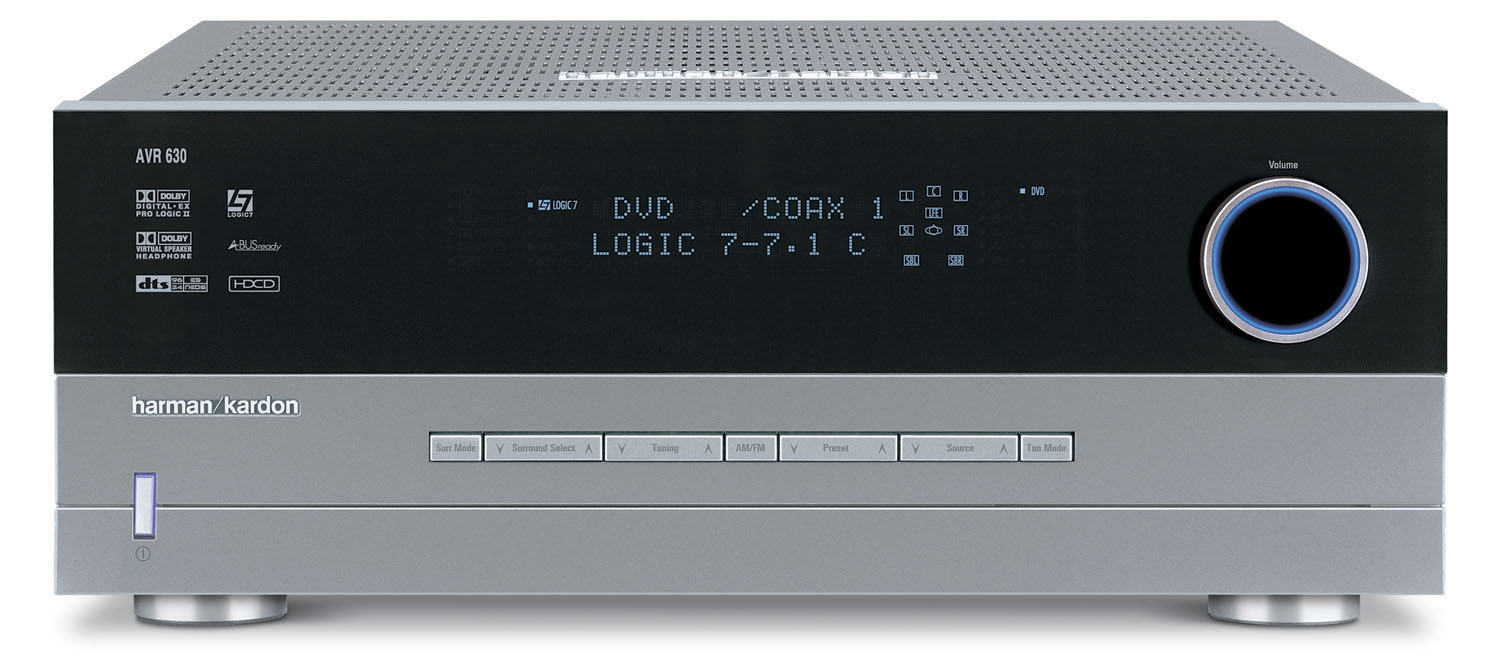

| Painel Frontal | Painel Traseiro
Veja a
avaliação feita por "Home Theater Magazine"
Veja
a avaliação feita por "Home Cinema Choice Online"
Veja
a avaliação feita por "Secrets of Home Theater & High
Fidelity"
Veja a
avaliação feita por "Audio Video Revolution"
Especificações
Técnicas
|
Audio
|
|
Stereo
Mode
Continuous Average Power (FTC) per Channel :
|
90
Watts per channel, 20Hz – 20kHz, @ <0.07% THD, both channels
driven into 8 ohms
|
|
Seven-Channel
Surround Modes, Power per Individual Channel :
|
|
|
Front
L & R Channels :
|
75
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Center
Channel :
|
75
Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Surround
Channels (L & R Side, L & R Back) :
|
75
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Input
Sensitivity/Impedance Linear (High-Level) :
|
200mV/47k
Ohms
|
|
Signal-to-Noise
Ratio (IHF-A) :
|
95dB
|
|
Surround
System Adjacent Channel Separation :
|
|
|
Dolby®
Pro Logic® I and II :
|
40dB
|
|
Dolby®
Digital :
|
55dB
|
|
DTS®
:
|
55dB
|
|
Frequency
Response at 1W (+0dB, –3dB) :
|
10Hz
– 130kHz
|
|
High
Instantaneous Current Capability (HCC) :
|
±50
Amps
|
|
Transient
Intermodulation Distortion (TIM) :
|
Unmeasurable
|
|
Slew
Rate :
|
40V/µsec
|
|
FM
Tuner
|
|
Frequency
Range :
|
87.5–108.0MHz
|
|
Usable
Sensitivity :
|
IHF
1.3µV/13.2dBf
|
|
Signal-to-Noise
Ratio :
|
Mono/Stereo
70/68dB
|
|
Distortion
:
|
Mono/Stereo
0.2/0.3%
|
|
Stereo
Separation :
|
40dB
@ 1kHz
|
|
Selectivity
:
|
±400kHz,
70dB
|
|
Rejection :
|
80dB
|
|
IF
Rejection :
|
90dB
|
|
AM
Tuner
|
|
Frequency
Range :
|
520–1720kHz
|
|
Signal-to-Noise
Ratio :
|
45dB
|
|
Usable
Sensitivity :
|
Loop
500µV
|
|
Distortion
:
|
1kHz,
50% Mod 0.8%
|
|
Selectivity
:
|
±10kHz,
30dB
|
|
Video
|
|
Television
Format :
|
NTSC
|
|
Input
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Output
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Video
Frequency Response :
|
|
|
Composite
and S-Video :
|
10Hz
– 8MHz (–3dB)
|
|
Component
Video :
|
10Hz
– 50MHz (–3dB)
|
|
General
|
|
Power
Requirement :
|
AC
120V/60Hz
|
|
Power
Consumption :
|
59W
Idle, 1000W at rated power output (7 channels driven)
|
|
Unit
Dimensions :
|
|
|
Width
:
|
17.3
inches (440mm)
|
|
Height
:
|
6.5
inches (165mm)
|
|
Depth
:
|
17.1
inches (435mm)
|
|
Carton
Dimensions :
|
20.1
inches x 10 inches x 22.2 inches
(510mm x 254mm x 565mm)
|
|
Unit
Weight :
|
41
lb (18.6kg)
|
|
Shipping
Weight (System, Accessories, Packing) :
|
47
lb (21.4kg)
|
Informações
técnicas complementares (capacitores/rerserva de energia)
Multichannel
A/V Receiver AVR-7300
(7.1)

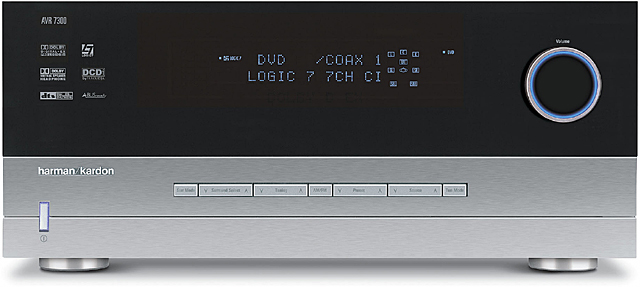

Super Foto

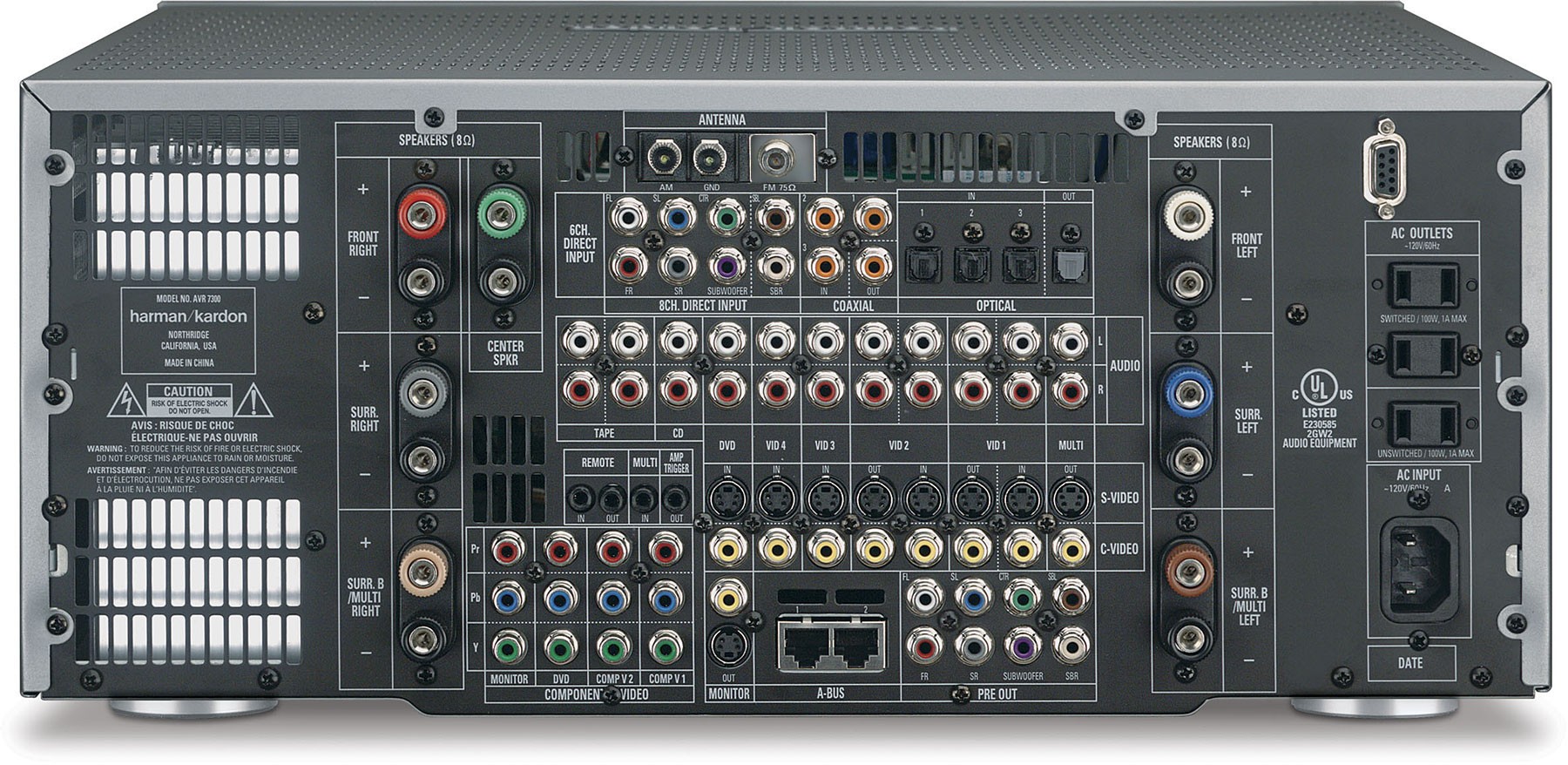

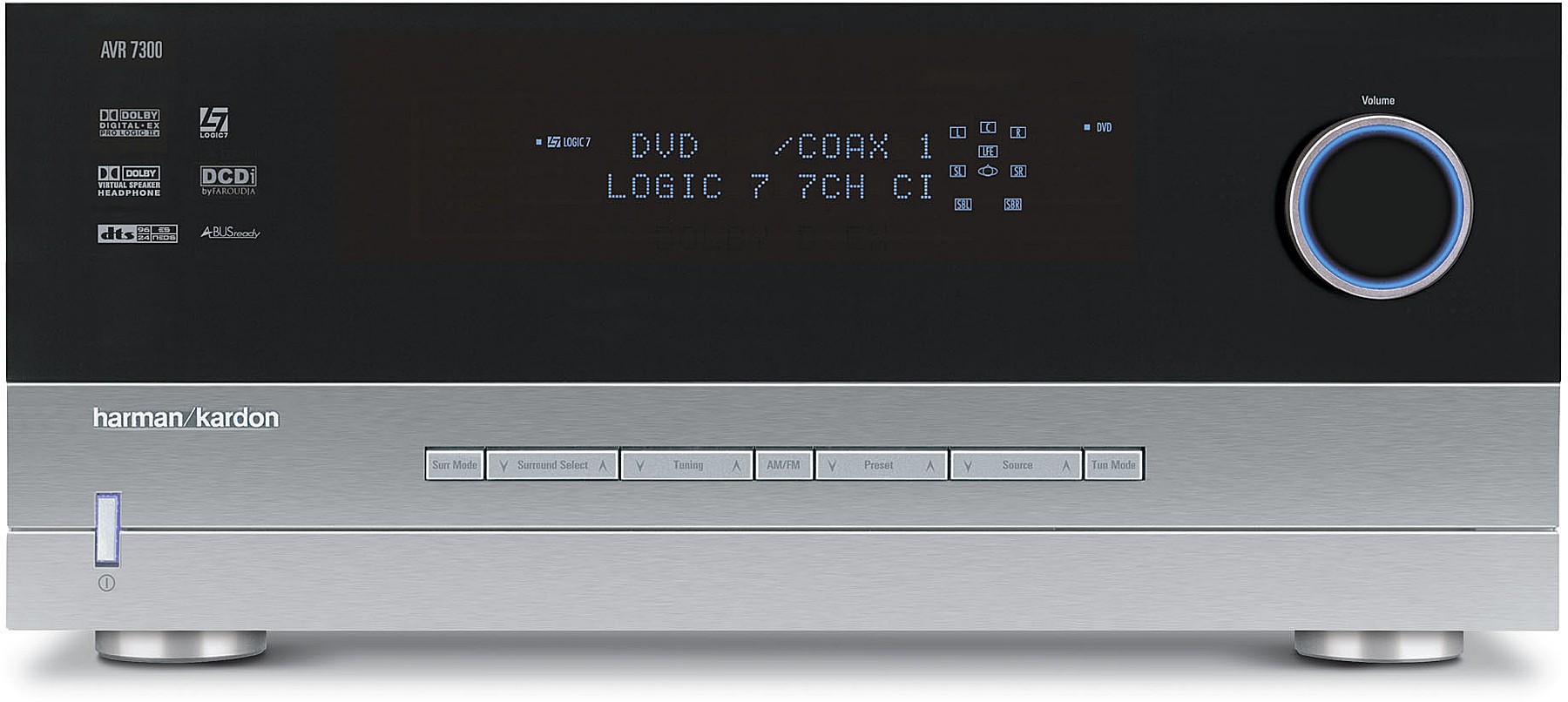

| Painel Frontal | Painel Traseiro
Veja
a avaliação feita por "Sound & Vision"
Confira
os testes feitos em laboratório!
Especificações
Técnicas
|
Audio
|
|
Stereo
Mode
Continuous Average Power (FTC) per Channel :
|
125
Watts per channel @ <0.07% THD, 20Hz – 20kHz, both channels
driven into 8 ohms
|
|
Seven-Channel
Surround Modes, Power per Individual Channel :
|
|
|
Front
L & R Channels :
|
110
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Center
Channel :
|
110
Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
Surround
Channels (L & R Side, L & R Back) :
|
110
Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
|
|
High
Instantaneous Current Capability (HCC) :
|
±75
Amps
|
|
Input
Sensitivity/Impedance Linear (High-Level) :
|
200mV/47k
ohms
|
|
Signal-to-Noise
Ratio (IHF-A) :
|
100dB
|
|
Frequency
Response at 1W (+0dB, –3dB) :
|
10Hz
– 100kHz
|
|
Surround
System Adjacent Channel Separation :
|
|
|
Dolby®
Pro Logic® I/II/IIx :
|
40dB
|
|
Dolby®
Digital :
|
55dB
|
|
DTS®
:
|
55dB
|
|
Transient
Intermodulation Distortion (TIM) :
|
Unmeasurable
|
|
Slew
Rate :
|
40V/µSec
|
|
FM
Tuner
|
|
Frequency
Range :
|
87.5
– 108.0MHz
|
|
Usable
Sensitivity :
|
IHF
1.3µV/13.2dBf
|
|
Signal-to-Noise
Ratio :
|
Mono/Stereo
70dB/68dB
|
|
Distortion
:
|
Mono/Stereo
0.2%/0.3%
|
|
Stereo
Separation :
|
40dB
@ 1kHz
|
|
Selectivity
:
|
±400kHz,
70dB
|
|
Rejection :
|
80dB
|
|
IF
Rejection :
|
90dB
|
|
AM
Tuner
|
|
Frequency
Range :
|
520
– 1710kHz
|
|
Signal-to-Noise
Ratio :
|
45dB
|
|
Usable
Sensitivity :
|
Loop
500µV
|
|
Distortion
:
|
1kHz,
50% Mod. 0.8%
|
|
Selectivity
:
|
±10kHz,
30dB
|
|
Video
|
|
Television
Format :
|
NTSC
|
|
Input
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Output
Level/Impedance :
|
1Vp-p/75
ohms
|
|
Video
Frequency Response :
|
|
|
Composite
and S-Video :
|
10Hz
– 8MHz (–3dB)
|
|
Component
Video :
|
10Hz
– 100MHz (–3dB)
|
|
General
|
|
Power
Requirement :
|
120V
AC/60Hz
|
|
Power
Consumption :
|
8.9W
Standby
130W Idle,
1,360W Max. (7 channels driven)
|
|
Unit
Dimensions :
|
|
|
Width
:
|
17.3"
(440mm)
|
|
Height
:
|
7.6"
(192mm)
|
|
Depth
:
|
20.5"
(520mm)
|
|
Unit
Weight :
|
55
lb (24.9kg)
|
|
Carton
Dimensions :
|
23"
(583mm) x 12.7" (323mm) x 24.7" (626mm)
|
|
Shipping
Weight (System, Accessories, Packing) :
|
69.3
lb (31.5kg)
|
Receivers
Harman Kardon
Informações
técnicas complementares:
Capacitores
da Fonte de Alimentação (Reserva de Energia)
Informações técnicas
complementares:
|
Modelo
|
FRONT
|
REAR |
TOTAL |
|
AVR-130 |
2x
6.800uF / 50V |
2x
4.700uF / 50V |
23.000uF |
|
AVR-230 |
2x
8.200uF / 50V |
2x
8.200uF / 50V |
32.800uF |
|
AVR-330 |
2x
10.000uF / 50V |
2x
8.200uF / 50V |
36.400uF |
|
AVR-430 |
2x
12.000uF / 63V |
2x
8.200uF / 63V |
40.400uF |
|
AVR-630 |
2x
15.000uF / 63V |
2x
10.000uF / 63V |
50.000uF |
|
Modelo
|
FRONT
|
REAR |
TOTAL |
|
AVR-135 |
2x
8.200uF / 50V |
2x
8.200uF / 50V |
32.800uF |
|
AVR-235 |
2x
10.000uF / 50V |
2x
8.200uF / 50V |
36.400uF |
|
AVR-335 |
2x
12.000uF / 63V |
2x
8.200uF / 63V |
40.400uF |
|
AVR-435 |
2x
12.000uF / 63V |
2x
8.200uF / 63V |
40.400uF |
|
AVR-635 |
2x
15.000uF / 63V |
2x
10.000uF / 63V |
50.400uF |
|
Modelo
|
FRONT
|
REAR |
TOTAL |
|
AVR-140 |
2x
8.200uF / 50V |
2x
8.200uF / 50V |
32.800uF |
|
AVR-240 |
2x
10.000uF / 50V |
2x
8.200uF / 50V |
36.400uF |
|
AVR-340 |
2x
12.000uF / 63V |
2x
8.200uF / 63V |
40.400uF |
*Fonte
das informações: Manual de
serviço do fabricante (dica enviada por Daniel Geronimo)
TABELA
COMPARATIVA DOS RECEIVERS A/V
|
|
|
|
|
|
|
| Specification |
AVR
130 |
AVR
230 |
AVR
330 |
AVR
430 |
AVR
630 |
AVR
7300 |
| #
of Amplifier Channels |
5 |
6 |
7 |
7 |
7 |
7 |
| Power
Rating (all channels driven at full power) |
45
x 5 @ 8 Ohms, (20Hz – 20kHz, <0.07% THD) |
50
x 6 @ 8 Ohms, (20Hz – 20kHz, <0.07% THD) |
55
x 7 @ 8 Ohms, (20Hz – 20kHz, <0.07% THD) |
65
x 7 @ 8 Ohms, (20Hz – 20kHz, <0.07% THD) |
75
x 7 @ 8 Ohms, (20Hz – 20kHz, <0.07% THD) |
110
x 7 @ 8 Ohms, (20Hz – 20kHz, <0.07% THD) |
| Digital
Inputs (Coaxial/Optical) |
2/2
on Rear; 1/1 on Front |
2/2
on Rear; 1/1 on Front |
2/2
on Rear; 1/1 on Front |
2/2
on Rear; 1/1 on Front |
2/2
on Rear; 1 (switchable to output)/1 on Front |
3/3
on Rear; 1 (switchable to output)/1 on Front |
| Analog
Inputs |
2
A/V on rear panel, 1 A/V on front panel, 2 audio only, 6-channel
input, tuner |
4
A/V on rear panel, 1 A/V on front panel, 2 audio only, 6-/8-channel input, tuner |
4
A/V on rear panel, 1 A/V on front panel, 2 audio only, 6-/8-channel input, tuner |
4
A/V on rear panel, 1 A/V on front panel (switchable to output),
2 audio only, 6-/8-channel input, tuner |
4
A/V on rear panel, 1 A/V on front panel (switchable to output),
2 audio only, 6-/8-channel input, tuner |
5
A/V on rear panel, 1 A/V on front panel (switchable to output),
2 audio only, 6-/8-channel input, tuner |
| On-Screen
Display |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| Multizone
Capability |
No |
No |
Audio;
Surround Back channels assignable to remote zone; Zone II Remote |
Audio;
A-BUS Ready®; RS-232 Serial Control Port; Surround Back
channels assignable to remote zone; Zone II Remote |
Audio;
A-BUS Ready®; RS-232 Serial Control Port; Surround Back
channels assignable to remote zone; Zone II Remote |
Audio
and video; A-BUS Ready® (two jacks); RS-232 Serial Control
Port; Surround Back channels assignable to remote zone; Zone II
Remote |
| EzSet™ |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| Remote
Control |
Seven-Device,
Programmable Remote |
Eight-Device,
Programmable Remote |
Backlit,
Eight-Device, Programmable Remote |
Backlit,
Eight-Device, Programmable Learning Remote (2-line LCD Display) |
Backlit,
Eight-Device, Programmable Learning Remote (2-line LCD Display) |
Backlit,
Eight-Device, Programmable Learning Remote (2-line LCD Display) |
VOLTAR
Copyright
© 2003-2014 - Audiorama! - Todos os direitos reservados
|
