Amplifier/Tuner Section

• 20 Watts per Channel (8 Ohms)
• Frequency response: 20Hz - 45Khz
• Total Harmonic Distortion: 1%
• Digital AM/FM Stereo Tuner
• 30 FM/ 30 AM Station Memory
• Sleep Timer (Up to 90 min.)
• Timer On/ Off & Clock Functions
• Multi-Function Fluorescent Display
• Full-function Remote Control

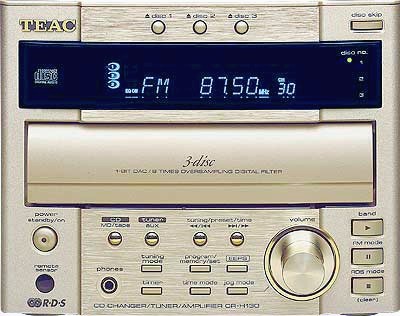

CD Section

• Frequency response: 20Hz - 45Khz +/-1.5dB
• Signal-to-Noise: 85dB
• Total Harmonic Distortion: 0.09%
• Drawer-Type 3-CD Elevator/Changer
• 32-Selection Programming
• Optical Digital Output

General

• Dimensions: 175 x 135 x 405 mm (WxHxD)
• Weight: 3.7 Kg

Speakers

• 2-Way Tuned Port Design
• 3.2" Woofer, 1" Tweeter
• Finish: Dark Rosewood Viny

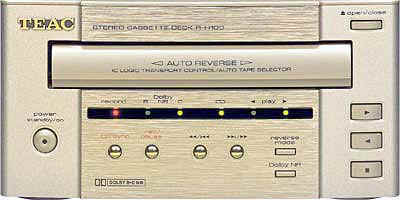

• Slide Loading Full-Logic Transport

• Auto Reverse with Two Reverse Modes
• Dolby B/C Noise Reduction
• Auto Tape Selector
• Music Search & Repeat Play
• REF-100 & REF-130 Compatible

• Frequency response: 40Hz - 14Khz (Normal)
• Frequency response: 60Hz - 15Khz (CrO2)
• Frequency response: 60Hz - 14Khz (Metal)
• Signal-to-Noise: 75dB (Dolby-C), 65dB (Dolby-B), 55dB
• Wow and Flutter: 0.15%

General

• Dimensions: 175 x 90 x 300 mm (WxHxD)
• Weight: 2.8 Kg

• 20-Bit 64x Oversampling A/D Converter
• 20-Bit 128x Oversampling D/A Converter
• Editing (Erase, Divide, Combine, Move)
• Built-in Sampling Rate Converter
• Title Search/Edit
• REF-100 & REF-130 Compatible

• Frequency response: 20Hz - 20Khz +/-0.5dB
• Signal-to-Noise: 92dB
• Total Harmonic Distortion: 0.007%
• Dynamic Range: 98dB

General

• Dimensions: 175 x 115 x 315 mm (WxHxD)
• Weight: 2.6 Kg
