Teac:
Reference 500
A-H500
INTEGRATED AMPLIFIER
|
Features
- 50W + 50WRMS 8 Ohms
- Left-right separate circuitry
- Toroidal power transformer
- 4Ohm Speaker drive capability
- Motor-driven volume control
- Tone control (bass, treble)
- CD Direct
- 6-Input selector: Tuner, Tape 1,
Tape2/MD, CD, Phono, Aux
- Record selector: (Tape 1-2, Tape 2-1,
Off, Source)
- Headphone jack
- Unswitched AC outlet x 2
- Binding post speaker terminals
- System Remote Control Included
Specifications
| Power
Output: |
50W
+ 50W RMS (8 Ohms)
80W
+ 80W RMS (4 Ohms)
|
| Total
Harmonic Distortion: |
<0.03%
(1kHz, 8 Ohms 45W) |
| Signal-to-Noise
(IFH-A): |
Phono:
67dB
Aux, CD, Tape, Tuner: 95dB
CD Direct: 100dB |
Input
Sensitivity/
Impedance: |
Phono:
2.8mV/10k
Aux, CD, Tape, Tuner: 180mV/10k |
| Frequency
Response: |
5Hz-80kHz |
| Tone
Control: |
Bass:
+/- 10dB (100Hz)
Treble: +/- 10dB (10kHz) |
| Power
Consumption: |
360W |
| Dimensions
WxHxD (USA): |
285x131x329mm
(11½" x 5¼" x 13 1/8")
6.9kg (15 lbs) |
|
AG-H500
STEREO RECEIVER
|
Features
- PLL (Phase-Locked Loop) synthesizer
tuning system
- 30-AM/30-FM preset station memory
- Stereo 40W + 40WRMS 8Ohms
- Motor-driven volume control
- 6-Input selector
- FL display
- Tone control(Bass, Treble)
- Headphone jack
- Unswitched AC outlet x 2
- Binding post speaker terminals
- System Remote Control Included
Specifications
| AMPLIFIER
SECTION |
|
| Power
Output: |
40W
+ 40W RMS (8 Ohms) |
| Total
Harmonic Distortion: |
<0.05%
(1kHz, 8 Ohms) |
| Signal-to-Noise
(IFH-A): |
Phono:
65dB
Aux, CD, Tape, Tuner: 90dB |
Input
Sensitivity/
Impedance: |
Phono:
2.5mV
Aux, CD, Tape, Tuner: 200mV/47k |
| Frequency
Response: |
5Hz-75kHz
+/- 3dB |
| Tone
Control: |
Bass:
+/- 10dB (100Hz)
Treble: +/- 10dB (10kHz) |
| TUNER
SELECTION |
|
| Frequency
Range: |
FM:
87.5MHz-108MHz
AM: 522kHz-1620kHz |
| Total
Harmonic Distortion: |
Mono
FM: 0.4%
Stereo FM: 0.5%
AM: 1.5% |
| Signal-to-Noise
(IFH-A): |
Mono
FM: 65dB
Stereo FM: 60dB
AM: 35dB |
| Frequency
Response: |
30Hz-15kHz
+1-1.5dB |
| GENERAL |
|
| Power
Consumption: |
100W |
| Dimensions
WxHxD (USA): |
285x131x352mm
(11½" x 5¼" x 14 1/16")
6.0kg (13 lbs) |
|

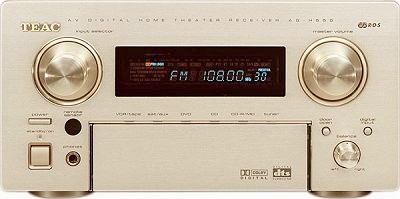

AG-H550
DTS and DOLBY DIGITAL SURROUND A/V RECEIVER
|
Features
| Surround
Power: 80 Watts x 5ch |
| High
Instantaneous Current Capability |
| Discrete
Output Circuit Configuration (D.O.C.C) |
| 96
kHz/24-bit D/A Converter |
| DTS
Digital Surround Converter |
| Dolby
Digital and Dolby Pro-Logic Surround Decoder |
| 4-DSP
Listening Modes (Theater/Hall/Stadium/Disco) |
| Quartz
PLL Synthesized Tuning System |
| 30
FM and 30 AM Station Presets |
| Electronically
and Manually Controlled Encoder Volume |
| 90
Min, Sleep Timer |
| Front
Panel Hadphone Jack |
| Full
Function Remote Control |
| Dimensions: |
W285
x H146 x D394mm
W11-3/16" x H5-3/4" x D15-1/2" |
| Weight: |
9.4 kg, 20-12/16lbs
|
Rear Panel Terminals
| S-Video
Input/Output Terminals (Min DIN jack): |
DVD
In, VCR In/Out, SAT/AUX In, MONITOR Out |
Video
Input/Output Terminals
(RCA jack): |
DVD
In, VCR In/Out, SAT/AUX In, MONITOR Out |
| DTS/Dolby
Digital/PCM Input Terminals: |
Coaxial
(RCA jack), Optical (TOS Link x2) |
| DTS/Dolby
Digital/PCM Output Terminals: |
Coaxial
(RCA jack), Optical (TOS Link) |
| Audio
Input/Output Terminals (RCA jack): |
DVD In, VCR In/Out, SAT/AUX In,
CD-R/MD In/Out, CD In
|
| Speaker
Terminals (Screw Type): |
Front
L/R, Center, Rear L/R |
| Antenna
Terminals: |
FM(DIN
Type), AM(Push Type) |
|
AV-H500D
A/V STEREO RECEIVER
|
Features
- Pro-Logic Dolby Surround
- 5 Surround Modes
- Stereo 80W + 80WRMS 8Ohms
- 5-Input selector (3 Video / 2 Audio)
- FL display
- Tone control(Bass, Treble)
- Headphone jack
- Sub-Woofer Output
- System Remote Control Included
Specifications
| AMPLIFIER
SECTION |
|
| Power
Output: |
80W
+ 80W RMS (8 Ohms) Stereo Mode
50W
RMS x 5 (4 Ohms) Surround Mode
|
| Total
Harmonic Distortion: |
<0.05%
(1kHz, 8 Ohms) |
| Signal-to-Noise
(IFH-A): |
90dB |
Input
Sensitivity/
Impedance: |
200mV/47k |
| Frequency
Response: |
40Hz-80kHz
+1/-3dB |
| Tone
Control: |
Bass:
+/- 10dB (100Hz)
Treble: +/- 10dB (10kHz) |
| GENERAL |
|
| Power
Consumption: |
100W |
| Dimensions
WxHxD (USA): |
285x131x352mm
(11½" x 5¼"
x 14 1/16")
7.0kg
(13 lbs) |
|

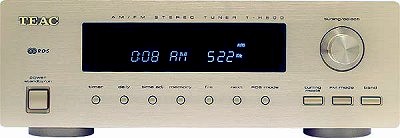

T-H500
AM/FM STEREO TUNER
|
Features
- PLL (Phase-Locked Loop) synthesizer
tuning system
- 30-AM/30-FM preset station memory
- AM/FM band selector
- Multi-function FL display
- Timer function (Daily, Sleep, Remote)
- Dimmer (remote)
- Auto memory
- Digital clock
Specifications
| Frequency: |
FM:
87.5MHz-108MHz
AM: 522kHz-1620kHz |
| Sensitivity
(FM): |
3.0µV
(S/N 30dB) |
| Total
Harmonic Distortion: |
Mono
FM: 0.15%
Stereo FM: 0.3%
AM: 1.5% |
| Signal-to-Noise: |
Mono
FM: 70dB
Stereo FM: 65dB
AM: 40dB |
| Frequency
Response: |
20Hz-15kHz |
| Image
Rejection: |
70dB |
| Power
Consumption: |
8W |
| Dimensions
WxHxD (USA): |
285x101x312mm
(11½" x 4" x 12¼")
2.3kg (5 lbs) |
|

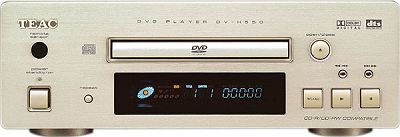

DV-H550
DVD PLAYER
|
Features
| Video
Functions: |
| Multi
Screen Aspect Ratio |
| Digital
Zoom Function (x4, x16 Still & Moving Pictures) |
| Multi
Speed Scan And Slow |
| Resume
Function |
| Audio
Functions: |
| High
Quality Digital Sound |
| Dolby
Digital/DTS/PCM Digital Output |
| 96kHz/24-bit/D/A
Converter |
| Other
Functions: |
| Playback
DVD/VCD/CD/CD-RW discs and MP3 |
| Multi-language
Subtitles and Sound |
| High
Speed Navigation |
| Full
Function Remote Control |
| Rear
Panel Terminals: |
| Component
Video Output: RCA Jack x3 (Y/CB/CR) |
| S-Video
Output: Mini DIN Jack x1 |
| Composite
Video Output: RCA Jack x 1 |
| Digital
Audio Output: |
|
Optical
(TOS Link) x 1, Coaxial (RCA jack) x 1
Down
Mixed Audio Output: RCA jack x 2 (L/R) |
| Dimensions: |
| W285
x H101 x D293 mm |
| Weight: |
| 4.0kg
(unfixed) |
|

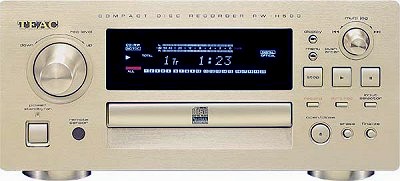

RW-H500
CD-R/CD-RW RECORDER
|
Features
- CD-R-DA / CD-RW-DA (Audio Format)
- On-board Fs converter (32 or 48 kHz to
44.1 kHz)
- Erase function for CD-RW
- CD-sync recording (all or select
tracks)
- Auto or manual track increment
- Program, repeat, and shuffle play
- L/R independent recording level
control
- Tos-Link optical digital input/output
- RCA analog inputs/outputs
- Remote Control Included
Specifications
| Digital
Filter: |
8-Times
Oversampling |
| Frequency
Response: |
20Hz-20kHz
+/-1dB |
| Signal-to-Noise
(IFH-A): |
<85dB |
| Channel
Separation: |
75dB |
| Total
Harmonic Distortion: |
<0.015% |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
9W |
| Dimensions
WxHxD (USA): |
285x129x310mm
(11½" x 5¼"
x 11½")
5.7kg (8 lbs) |
|

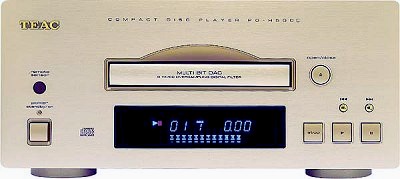

PD-H500
CD PLAYER
|
Features
- 1-Bit D/A converter
- 8-Times oversampling digital filter
- Multi-function FL display
- Shuffle play (remote)
- Music calendar display
- Repeat play ONE/ALL/A-B (remote)
- 2-Digital output (TOS-LINK) for MD/DAC/CD-R
- Timer play
Specifications
| Digital
Filter: |
8-Times
Oversampling |
| Frequency
Response: |
20Hz-20kHz
+/-2dB |
| Signal-to-Noise
(IFH-A): |
<100dB |
| Total
Harmonic Distortion: |
<0.02% |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
9W |
| Dimensions
WxHxD (USA): |
285x131x292mm
(11½" x 5¼" x 11½")
5.7kg (8 lbs) |
|

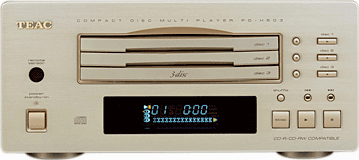

PD-H503
3-CD CHANGER
|
Features
- 1-Bit D/A converter
- 8-Times oversampling
digital filter
- Multi-function FL
display
- Shuffle play (remote)
- Music calendar display
- Repeat play ONE/ALL/A-B
(remote)
- 2-Digital output (TOS-LINK)
for MD/DAC/CD-R
- Timer play
Specifications
| Digital
Filter: |
8-Times
Oversampling |
| Frequency
Response: |
20Hz-20kHz
+/-2dB |
| Signal-to-Noise
(IFH-A): |
<100dB |
| Total
Harmonic Distortion: |
<0.02% |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
9W |
| Dimensions
WxHxD (USA): |
285x131x292mm
(11½" x 5¼" x 11½")
5.7kg (8 lbs) |
|

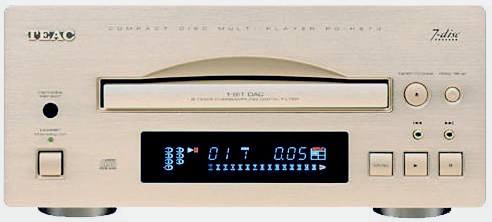

PD-H570
7-CD CHANGER
|
Features
- 7 CD Changer QDBS (Quick Disc Bank
System)
- 1-Bit D/A converter
- Music calendar display
- Shuffle play
- 2 Digital outputs (TOS-LINK) for MD/DAC/CD-R
- 8x oversampling digital filter
- Multi-function FL display
- 32 track memory
- Repeat play ONE/ALL/A-B (remote)
- Timer Play
- Optional remoter control (RC-612)
Specifications
| Digital
Filter: |
8-Times
Oversampling |
| Frequency
Response: |
20Hz-20kHz
2dB |
| Signal-to-Noise
(IFH-A): |
<96dB |
| Total
Harmonic Distortion: |
<0.015% |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
9W |
| Dimensions
WxHxD (USA): |
285x131x327mm
(11½" x 5¼" x 13 1/8")
5.2kg (11 lbs) |
|

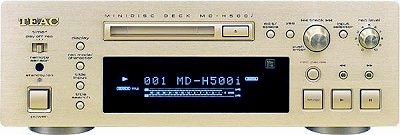

MD-H500
MINI-DISC DECK
|
Features
- Edit function with multi-jog dial:
divide/combine/erase/move/title
- Auto and manual track marking, auto
track search
- Auto space
- Sound/CD sync, record
- Cue/review
- Program/Shuffle play
- Timer Record/Play
- Auto-ready
- Multi-function FL display
- Repeat ONE/ALL/A-B
- TOS-LINK digital input &output
- Remote Control Included
Specifications
| Record/Play
Time: |
74
Minutes(max) |
| Sampling
Frequency: |
44.1kHz |
| Frequency
Response: |
10Hz-20kHz
+/-0.5dB |
| Signal-to-Noise: |
>98dB
(playback) |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
19W |
| Dimensions
WxHxD (USA): |
285x103x340mm
(11½" x4 1/8" x 13½")
3.6kg (8 lbs) |
|

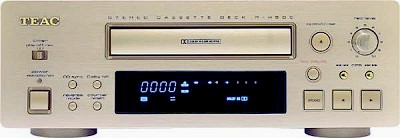

R-H500
CASSETTE DECK
|
Features
- Full logic transport control
- Bi-directional record & playback
- Dolby B/C Noise Reduction system with
HX Pro
- CD synchro-dubbing (CD to Tape)
- Multi-function FL display
- Digital tape counter
- Auto tape selector
- CPS (Program Search)
Specifications
| Motor: |
DC
Motor |
| Frequency
Response: |
Normal:
Normal: 40Hz-14kHz
CrO2a: 40Hz-15kHz
Metal: 40Hz-16kHz |
| Wow
and Flutter |
0.15%
(JIS, Wrms) |
| Signal-to-Noise
(IFH-A): |
Dolby
C NR ON: 75dB
Dolby B NR ON: 65dB
Dolby NR OFF: 55dB |
| Power
Consumption: |
21W |
| Dimensions
WxHxD (USA): |
285x101x304mm
(11½" x 4" x 12 1/8")
4.1kg (9 lbs) |
|

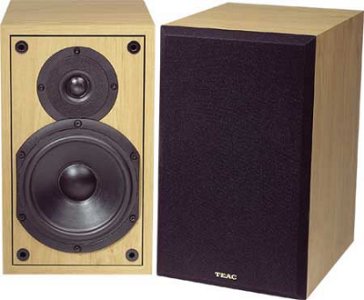

LS-500U
2-Way Speaker System
|
Features
- Designed to match
TEAC Reference 500 systems
- 2-way acoustic
suspension system
- 110W (max. music
power) input
- 4 Ohms impedance
- Frequency response:
45Hz to 20kHz
- 1 x 26mm dome
tweeter
- 1 x 165mm cone
midrange/woofer
- Removable grill
- Beech-Iook finish
- Dimensions: 200 x
330 x 270mm (WxHxD)
- Weight: 5.4kg
|
VOLTAR
Copyright
© 2003-2005 - Audiorama! - Todos os direitos reservados
|
